Arrow Tight Waterproofing doesn't sell one-size-fits-all waterproofing packages. We diagnose the entry point, the pressure source, and the existing drainage condition — then we build the solution around what your specific property needs.
💧
Interior Drain Tile & Perimeter Channel Systems
When hydrostatic pressure is the primary culprit, the most effective long-term solution is a properly engineered interior drainage system. We install sub-slab perforated drain tile around the perimeter of your basement — capturing water before it can rise above slab level — and route it to a sump pit equipped with a dual-pump configuration.
Our sub-slab drainage systems use schedule 40 perforated PVC pipe in a stone bed, designed to handle high-volume water tables.
📞 Get a Free Drainage Quote →
🏗️
Full Excavation Exterior Waterproofing Systems

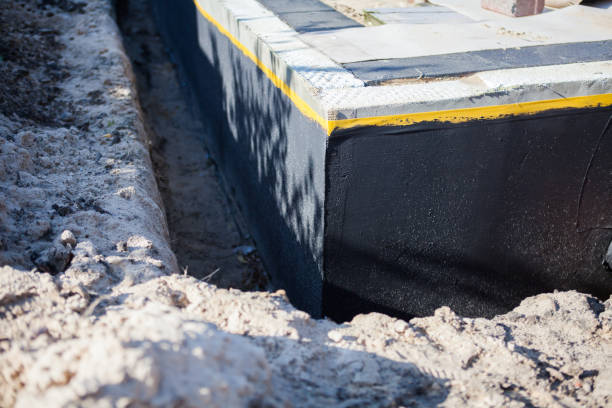

Exterior waterproofing is the most comprehensive solution available — stopping water before it contacts your foundation wall. We excavate to the footing, apply a rubberized polymer membrane to the exterior foundation face, install dimple-mat drainage board, and backfill with clean crushed stone to redirect surface water away from the structure.
This approach solves the problem at the source: water never reaches your interior wall surface.
📞 Schedule an Exterior Assessment →
🔧
Structural Crack Repair: Injection & Carbon Fiber Stapling
We inject poured-wall cracks using a port-and-backer system: surface ports are installed at 8–12 inch intervals along the crack, the surface is sealed with hydraulic cement, and two-part polyurethane or epoxy is pumped under pressure from the lowest port up — filling the crack through its full depth.
For concrete block foundation walls showing horizontal cracking or inward bowing, we pair crack repair with carbon fiber reinforcement straps anchored at the floor and rim joist.
📞 Get a Crack Injection Estimate →
🌿
Full Crawl Space Waterproofing & Drainage Installation
We install a minimum 20-mil reinforced poly vapor barrier over the entire crawl space floor and seal it up the walls to the sill plate — then seal all vents, install a conditioned air supply or dedicated crawl space dehumidifier, and spec a sump system if groundwater is present.
For crawl spaces with active water entry, we install a perimeter drain channel at the footer line, route it to an appropriate discharge point or sump.
📞 Schedule a Crawl Space Inspection →
⚙️
Primary & Backup Sump Pump Systems for Snellville Homes
The sump pit itself matters as much as the pump. We construct 18-inch diameter pits with a gravel bed at the base for proper water collection, sealed lids to prevent vapor and radon entry, and a discharge line that terminates a minimum of 10 feet from the foundation at a positive-grade daylight point.
Sump pump replacement is one of the most time-sensitive repairs in waterproofing — a failed pump during a heavy rain event means an immediate flood.
📞 Get a Sump System Quote →
🪟
Basement Window Well Repair & Drainage Installation
We excavate and regrade window wells to the proper dimension, install a gravel drain bed with a perforated pipe tied into your perimeter drainage system, and apply waterproof flashing around the window frame — stopping the entry point at the source instead of managing it inside.
Egress window installations create a significant opening in your foundation wall, and sealing the rough opening properly is as important as the window itself.
📞 Book a Window Well Assessment →
